Side Walk Shed
Side Walk Shed

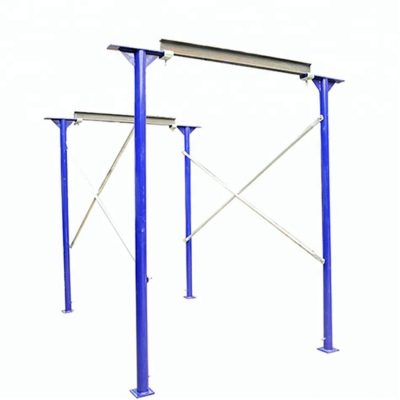

Sidewalk sheds are temporary structures built to protect people or property mostly used in New York.They perform the important function of protecting pedestrians from crumbling building facades and other construction hazards above.
The most important part of side walk sheds is bridge leg. Bridge leg acts as a support in side shed assembly.
Grade
Bridge legs at our company are made in Q345.
Surface Finish
It can be powder coated or hot zinc.
Thickness
We provide different thickness as per clients requirements.

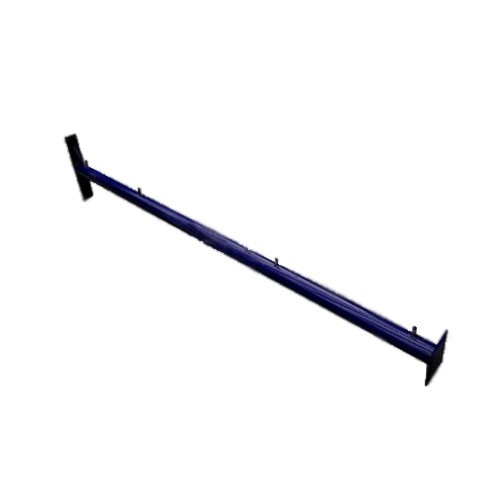

Bridge Legs
| Item Code | Length | Size | Weight |
|---|---|---|---|
| SE-BL - 01 | 8' | 89 x 4.0 | 27.2 kg |
| SE-BL - 02 | 10' | 89 x 4.0 | 32.3 kg |
| SE-BL - 03 | 12' | 89 x 4.0 | 37.4 kg |
| SE-BL - 04 | 14' | 89 x 4.0 | 42.5 kg |
| SE-BL - 05 | 16' | 89 x 4.0 | 47.6 kg |
| SE-BL - 06 | 18' | 89 x 4.0 | 52.7 kg |
| SE-BL - 07 | 20' | 89 x 4.0 | 57.8 kg |

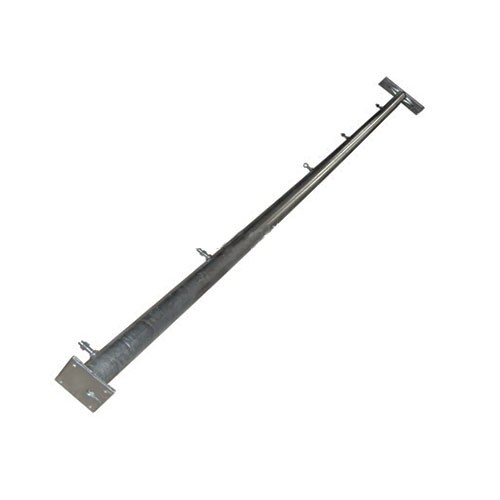

Hot Zinc Bridge Legs
| Item Code | Length | Size | Weight |
|---|---|---|---|
| SE-BL - 08 | 8' | 89 x 4.0 | 28.6 kg |
| SE-BL - 09 | 10' | 89 x 4.0 | 34 kg |
| SE-BL - 10 | 12' | 89 x 4.0 | 39.4 kg |
| SE-BL - 11 | 14' | 89 x 4.0 | 44.7 kg |
| SE-BL - 12 | 16' | 89 x 4.0 | 50 kg |
| SE-BL - 13 | 18' | 89 x 4.0 | 55.4 kg |
| SE-BL - 14 | 20' | 89 x 4.0 | 60.8 kg |
| Item Code | Length | Size | Weight |
|---|---|---|---|
| SE-BL - 15 | 8' | 89 x 4.5 | 31.1 kg |
| SE-BL - 16 | 10' | 89 x 4.5 | 37.2 kg |
| SE-BL - 17 | 12' | 89 x 4.5 | 43 kg |
| SE-BL - 18 | 14' | 89 x 4.5 | 49 kg |
| SE-BL - 19 | 16' | 89 x 4.5 | 55 kg |
| SE-BL - 20 | 18' | 89 x 4.5 | 58.3 kg |
| SE-BL - 21 | 20' | 89 x 4.5 | 64 kg |

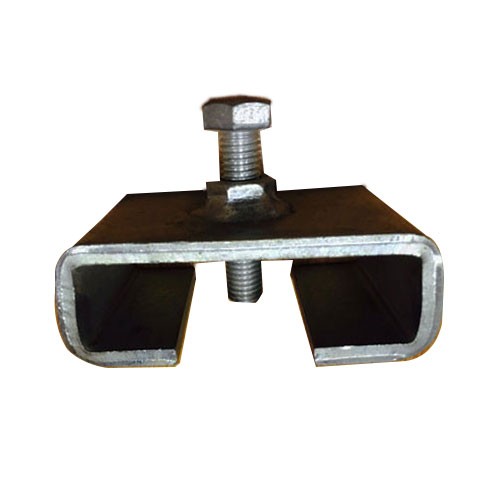

Header Clamp
Header clamp is made in Q235 Steel in thickness of 8 mm with Bolt of 8.8 Grade.
Header Clamp is fixed on the top of bridge leg to fix a connection between bridge leg and the beam.
Weight – 1.3 kgs/pc

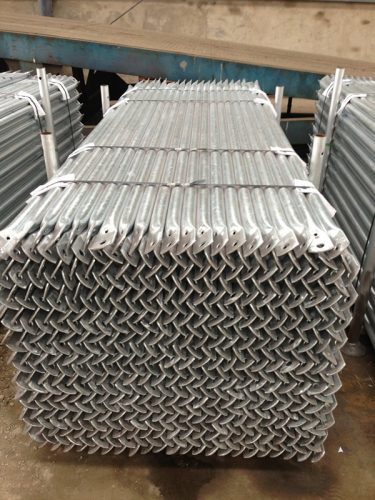

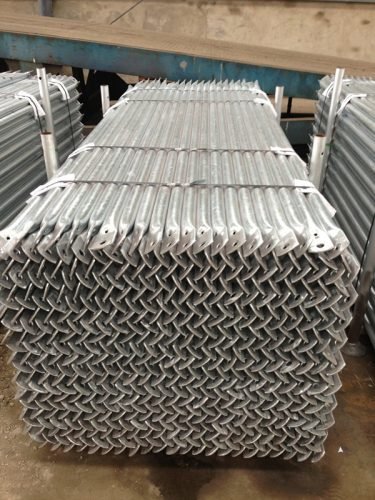

Galvanized Girtz for Bridge legs
Girtz acts as brace points to prevent system sway. Size of Girtz is 42×2.0 mm. Thickness can be customized depending on client requirement.
| Item Code | Length | Size | Weight |
|---|---|---|---|
| SE-GG - 01 | 1 Feet | 42 x 2.0 mm | 0.74 kg |
| SE-GG - 02 | 2 Feet | 42 x 2.0 mm | 1.33 kg |
| SE-GG - 03 | 3 Feet | 42 x 2.0 mm | 1.93 kg |
| SE-GG - 04 | 4 Feet | 42 x 2.0 mm | 2.54 kg |
| SE-GG - 05 | 5 Feet | 42 x 2.0 mm | 3.14 kg |
| SE-GG - 06 | 6 Feet | 42 x 2.0 mm | 4.35 kg |
| SE-GG - 07 | 7 Feet | 42 x 2.0 mm | 4.95 kg |

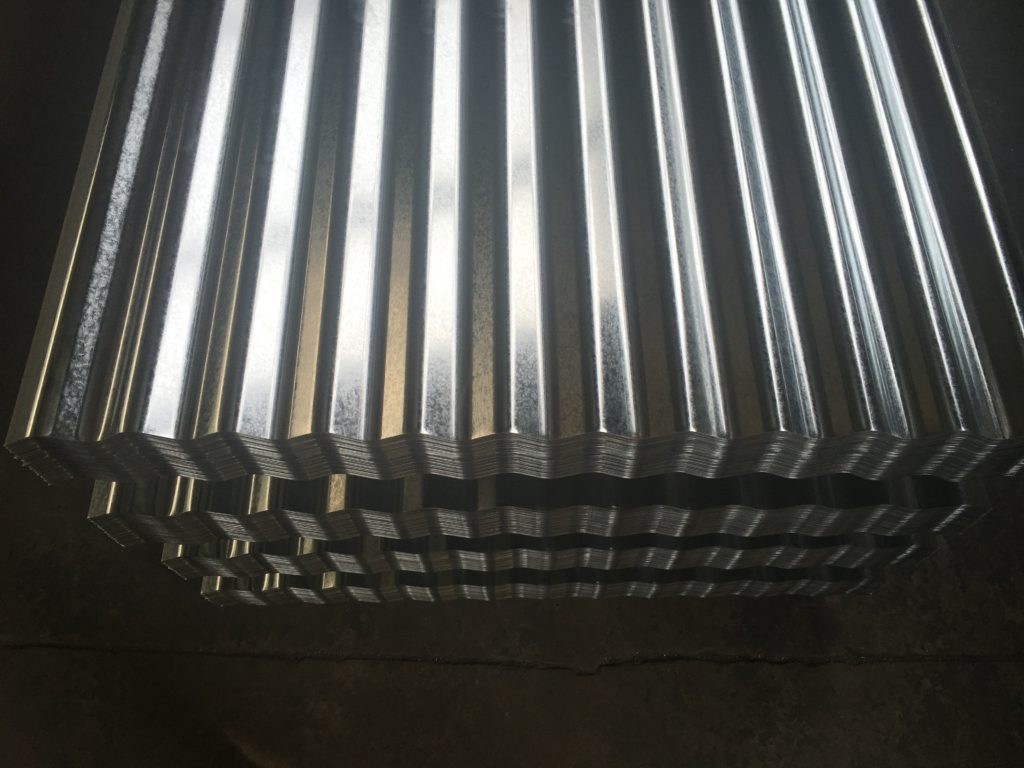

Corrugated Sheets – 33 inches corrugated sheets are made in different sizes as per client requirements. Some of the standard sizes are as follows
Galvanized Corrugated sheets
Galvanized Corrugated in different size are available. Surface finish in painted and self are done as per requirements.
| Item Code | Length | Size | Weight |
|---|---|---|---|
| SE-CS - 01 | 8' | 8 x 33 | 9.2 kg |
| SE-CS - 02 | 10' | 8 x 33 | 11.48 kg |
| SE-CS - 03 | 12' | 8 x 33 | 13.78 kg |

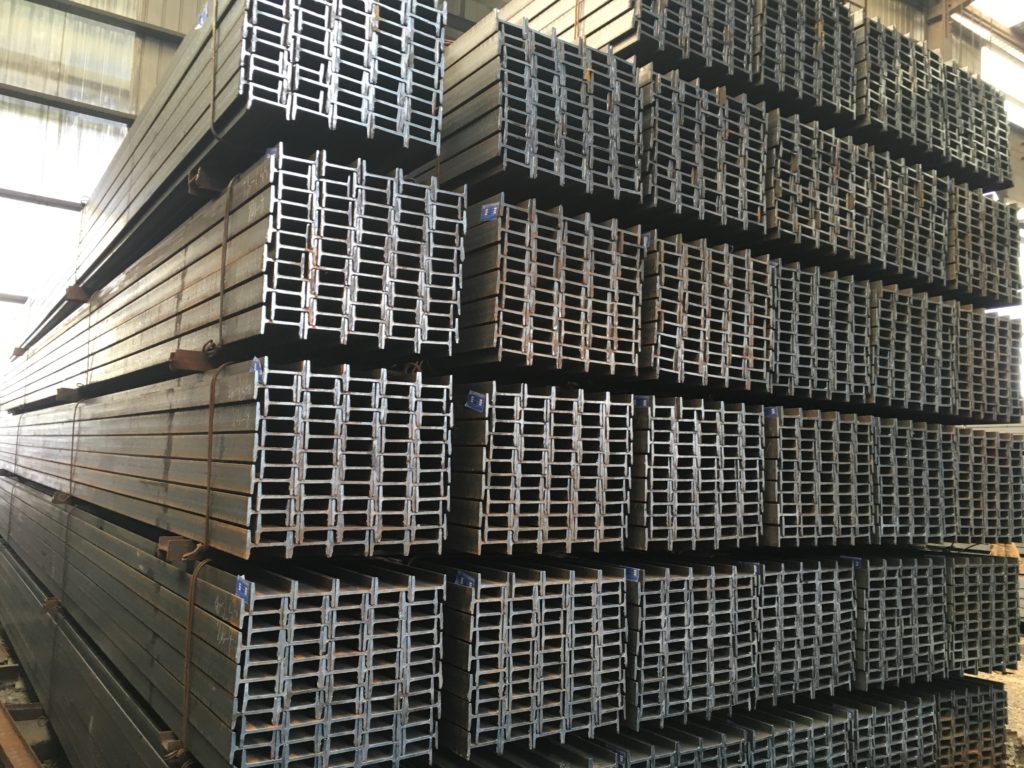

Junior Beams
Junior beams in different size are available. Surface finish in painted and self are done as per requirements.
| Item Code | Length | Weight |
|---|---|---|
| SE-JB - 01 | 10' | 33.8 |
| SE-JB - 02 | 13' | 44.5 |
| SE-JB- 03 | 15' | 49.3 |
