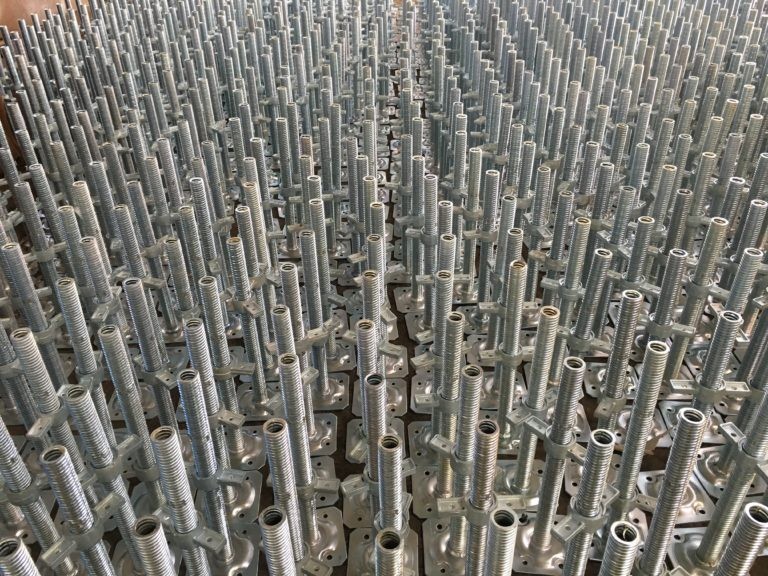

Base jack
Base jack
As the name suggests, base jack is the base of the scaffolding system. It provide support and levelling at all places during erection of the system. It is of many types and sizes depending upon the type of system being used.
Standard-
All Our Base jacks are in compliance with Standard EN 74.
Accessory –
All the accessory of base jack such as base plates, Nuts for base jack nut both forged and casted are made by us and exported.
Testing –
Proper SGS Testing reports for material grades and load capacities provided on client requests
Load Capacity –
Failure load at 150 KN for 32mm, 34mm and 38 mm Hollow Base JACKS. 200 kN For the Solid Base jack 35mm.
Surface Finish –
- Electrical Zinc Base Jack (EG Base Jack)
- Painted base Jack (Painted Base Jack)
- HOT ZINC PROPS (HDG PROPS)

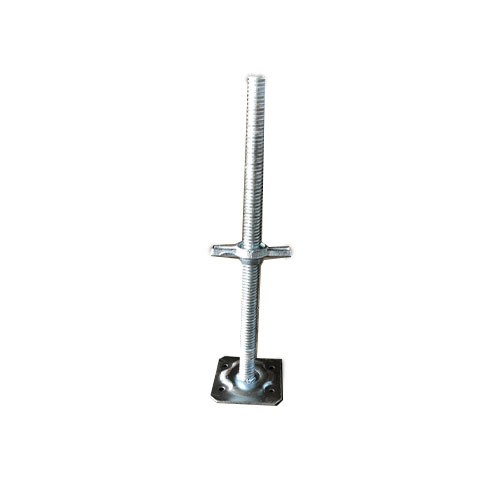

Base Jack Common Size Chart
| Item Code | Tube Size | Plate Size | Casted Nut | Weight |
|---|---|---|---|---|
| SE-BJ - 01 | 32 x 4 x 500 mm | 150 x 150 x 5 mm | 0.45 Kg | 2.65 kg |
| SE-BJ - 02 | 32 x 4 x 600 mm | 150 x 150 x 5 mm | 0.45 Kg | 2.90 kg |
| SE-BJ - 03 | 32 x 4 x 800 mm | 150 x 150 x 5 mm | 0.45 Kg | 3.45 kg |
| SE-BJ - 04 | 32 x 4 x 600 mm | 150 x 150 x 5 mm | 0.45 Kg | 3.10 kg |
| SE-BJ - 05 | 32 x 4 x 600 mm | 150 x 150 x 5 mm | 0.45 Kg or 0.68 kg | 3.26 kg |
| SE-BJ - 06 | 35 x 610 mm | 150 x 150 x 5 mm | 0.45 Kg or 0.68 kg | 3.26 kg |
| SE-BJ - 07 | 32 x 500 mm | 150 x 150 x 5 mm | 0.45 Kg or 0.68 kg | 3.26 kg |

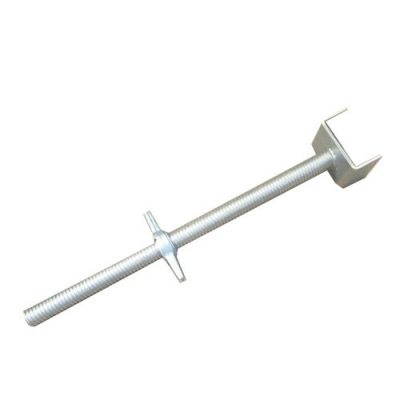

U Head Jack
| Item Code | Tube Size | U Size | Nut | Weight |
|---|---|---|---|---|
| SE-UJ - 01 | 34 x 4 x 500 mm | 190 x 100 x 100 x 5 | 0.45 kg | 3.62 kg |
| SE-UJ - 02 | 38 x 4 x 500 mm | 200 x 150 x 80 x 6 | 0.68 Kg | 5.06 kg |
| SE-UJ - 03 | 38 x 4 x 650 mm | 200 x 150 x 80 x 6 | 0.68 Kg | 5.55 kg |

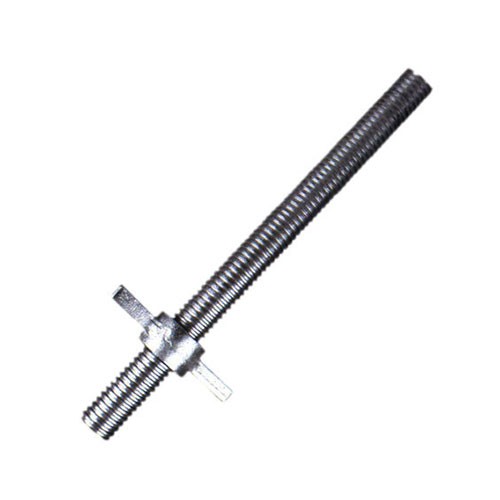

Universal Jack
| Item Code | Tube Size | Nut | Weight |
|---|---|---|---|
| SE-UJ - 04 | 48 x 3.75 x 750 mm | 0.72 | 3.78 kg |
| SE-UJ - 05 | 35 x 4 x 610 mm | 0.68 | 2.42 kg |

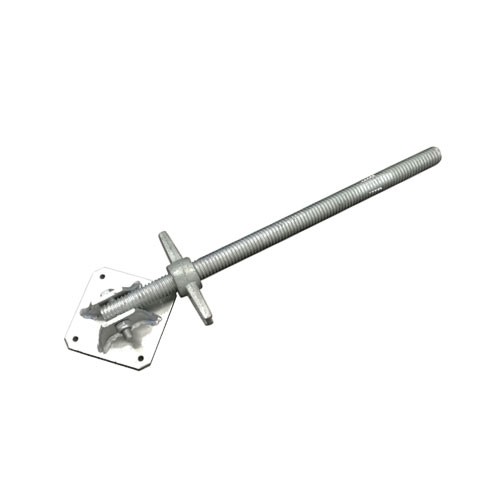

Swivel Jack
| Item Code | Tube Size | Nut | Weight |
|---|---|---|---|
| SE-SJ - 01 | 38 x 4 x 500 mm | 0.45 | 3.58 kg |
| SE-SJ - 02 | 38 x 4 x 650 mm | 0.68 | 4.1 kg |
