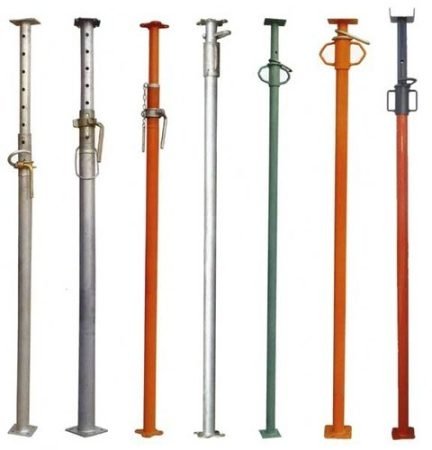

Shoring Props
Shoring Props -
Shoring props are using in shoring props for supporting the load at top. The two most common types used in industry are Standard vertical adjustable props and Inclined props. We use EN 1075 standard for our props. We also sell Base plates, locking pin, prop sleeve which are accessories of shoring props. Classes of props are A,B,C,D.
| Item Code | Close and Open Length | Plate Size | Inner Tube/Outer Tube | Tube Thickness | Nut type |
|---|---|---|---|---|---|
| SEPR - 01 | 1.75 - 3.0 m | 120x120x5mm | 40/40 , 48/56 | As per Client Request / Usage | Cup Nut , Casted Nut and Forged nut with L type handle. |
| SEPR - 02 | 1.80 - 3.2 m | 120x120x5mm | 40/48,42/50.8,48/56,48/57,48/60 | ||
| SEPR - 03 | 1.98 - 3.5 m | 120x120x5mm/ 120x120x6mm | 40/48,42/50.8,48/56,48/57,48/60 | ||
| SEPR - 04 | 2.20 - 4.0 m | 150x150x8mm | 48/60,60/70,60/76 | ||
| SEPR - 05 | 3.10- 5.5 m | 150x150x8mm | 48/60,60/70,60/76 |
Testing –
- Proper SGS Testing reports for material grades and load capacities provided on client requests
Surface Finish –
- Pre Galvanized Props
- Electro Zinc Props (EG PROPS)
- Powder Coated Props (PC PROPS)
- HOT ZINC PROPS (HDG PROPS)

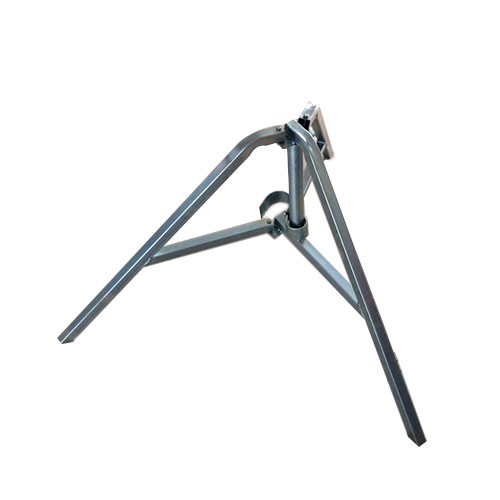

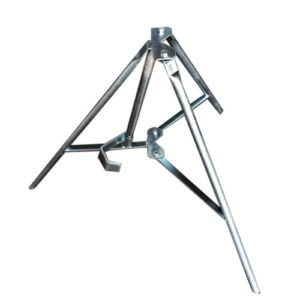

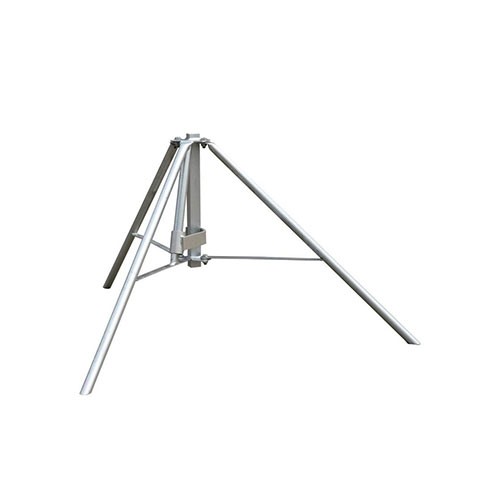

Tripod
Tripods provide Support assembly for the Shoring Props during assembly at construction sites. They are designed as per the shoring prop tube sizes and weights which they support.
Surface finish – Electro Galvanized and Hot Zinc surface finished.
Model : SE-TR1 For 40mm prop tube to 60 mm prop Tube.
Model : SE-TR2 For 40 mm prop tube to 76 mm Prop Tube.
Model : SE-TR3 Square Tube Tripod For Heavy Duty.
Props Accessories -

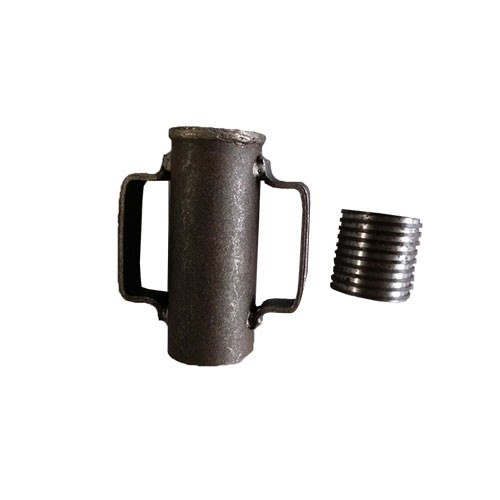

Prop Cup nut with sleeve
Code-SE-SPA-01
Length 125 mm , 135 mm

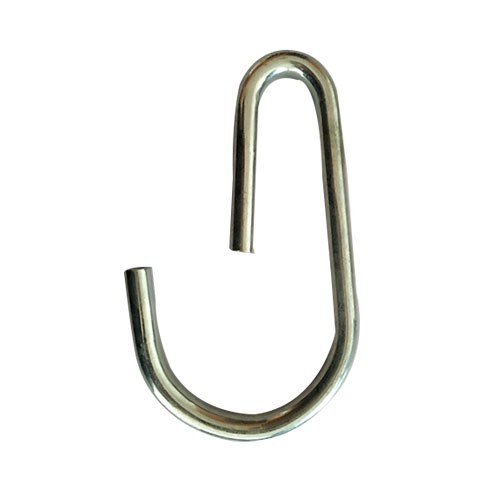

Prop Pin
Code-SE-SPA-02
Sizes 10 mm , 12 mm , 14 mm , 16 mm

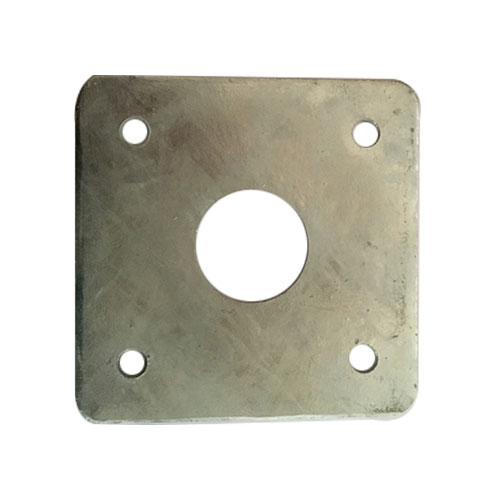

Prop Plate
Code-SE-SPA-03
Size 120x120x5, 120x120x8, 150x150x8

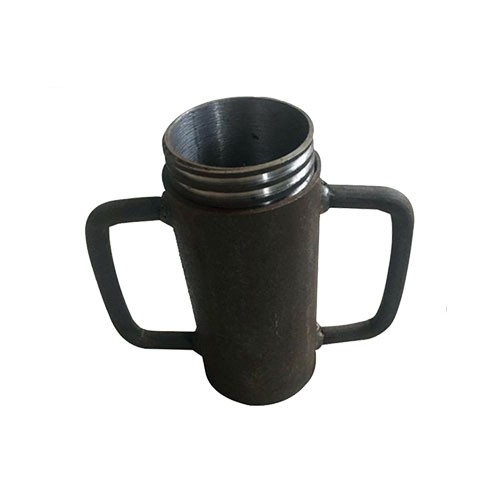

Prop Nut With sleeve
Code-SE-SPA-04
Length - 230 mm
Fork Head
Code-SE-SPA-05
Weight - 2.5 Kg

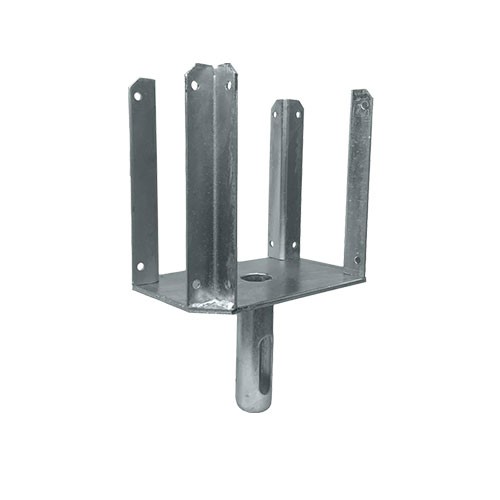

Four Way Head
Code-SE-SPA-06
Weight - 2.5 Kg

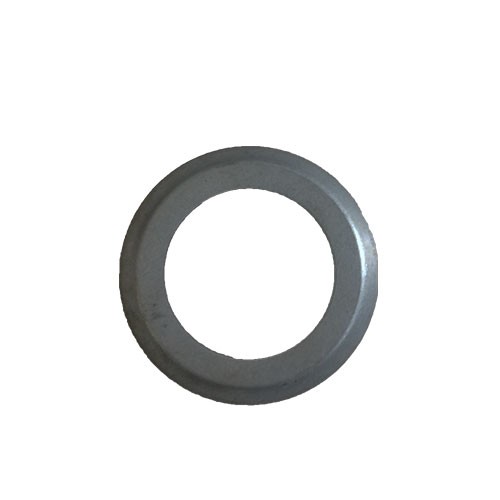

Dust Cap
Code-SE-SPA-07
Size 120x120x5, 120x120x8, 150x150x8

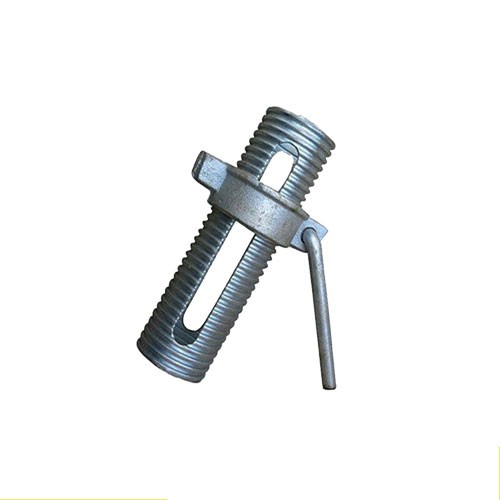

Nut With Welded Dust Cap
Code-SE-SPA-08
Length - 230 mm
